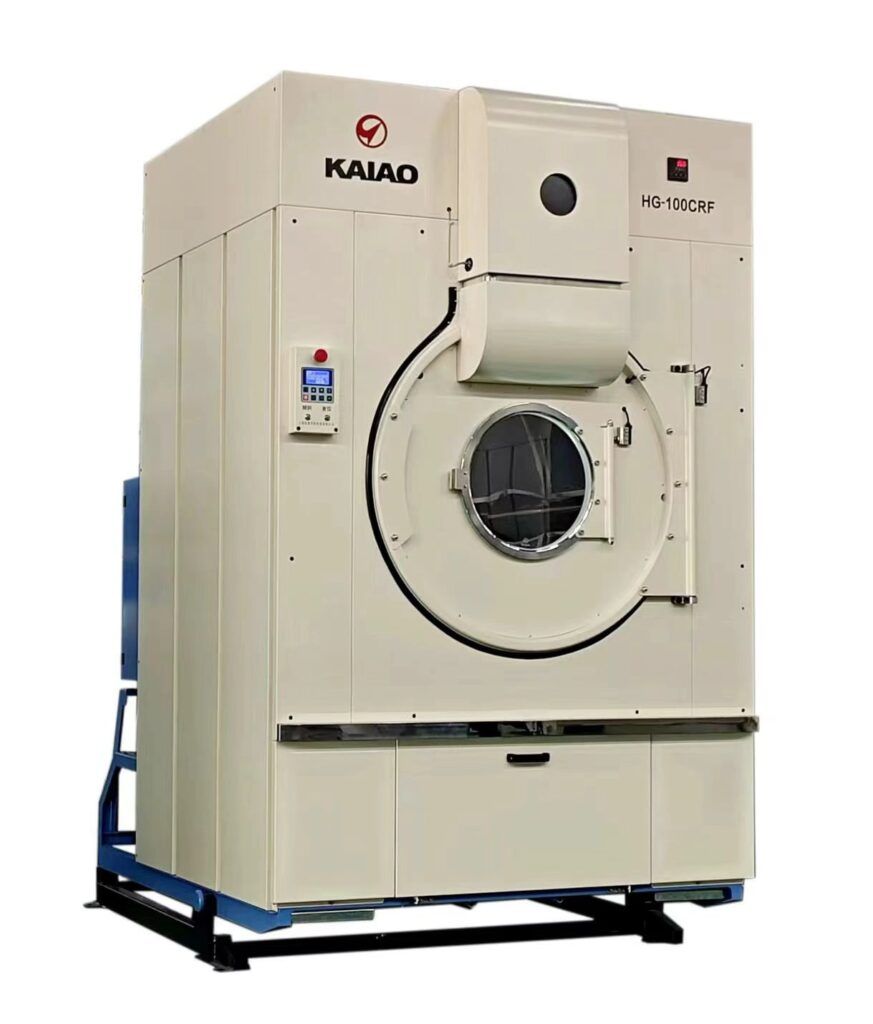

HG-100CRF Front Air Intake Gas Dryer
The burner of HG-100CRF front air intake gas dryer is mounted on the isolated and sealed top of the dryer.
Advantage: The laundry in the drying drum is kept over 1.5 meters away from burner flames, eliminating risks of deflagration and direct flame heating to the drum and internal laundry.
It adopts multi-stage fire drying control technology.
Advantage: High heat is applied for high-moisture laundry at the initial drying stage, while low heat works in the final phase. It avoids over-drying, stiffening and yellowing of fabrics. Drying quality is comparable to steam dryers with faster drying speed.
Designed with negative-pressure front air duct structure.
Advantage: Most heat is delivered into the drum, achieving high heat utilization and drying efficiency with lower energy consumption.
Equipped with sealed top and bottom air intake filter structure.
Advantage: Recycles dissipated heat from the unit and heater, ensures clean air entering the combustion chamber. Easy cleaning and improved working environment.
Adopts variable-frequency fan temperature regulation technology.
Advantage: Optimally matches air volume and gas heating power to boost efficiency and cut energy use, with quicker cold air ventilation.
Built-in large drawer-type lint filter box.
Advantage: Simple operation. 60-mesh stainless steel filter ensures tight sealing and low dust emission, minimizing environmental impact.
Dual-door structure design.
Advantage: Large door facilitates loading and unloading; small door enables inspection without fabric falling off and excessive heat loss.
Reverse baffle structure for top exhaust duct.
Advantage: Flexible duct installation. Multiple dryers can share one exhaust pipe without backflow, keeping the rear area tidy and unobstructed.
Optional top exhaust heat recovery device.
Advantage: Recycles over 75% of high-temperature exhaust heat generated in the late drying stage. Ideal for garment printing, dyeing and laundry industries, reducing heat waste caused by extra drying for fabric shrinkage control.
Optional pneumatic tilting automatic discharging device.
Advantage: Realizes rapid fabric discharging. Resolves troubles caused by tangled laundry, saving labor and time especially for towels, bed covers and curtains.
Optional silencer duct.
Advantage: Greatly reduces operating noise for noise-sensitive working sites.
